How to win silver in the CodeCup

The game Entropy

In Entropy, the players take turns trying to achieve their competing goals. Order tries to create patterns and Chaos tries to prevent those patterns. The board starts empty in every match, but Chaos grabs a random chip from the bag every turn and places it on an empty field.

Example gameplay
Source: CodeCup

After Chaos places a chip, it is Order's turn. Order can choose to move one chip orthogonally or to skip their turn. For example, in the picture above Order can move the blue chip on Dd only to Dc, Cd, Bd or Ad. After that, Chaos takes a turn again. Once the board is full, the match ends and the points are counted.

Point calculation

Order scores points for the length of every orthogonal palindrome (a pattern of colors the same in both directions). All palindromes are counted, even those inside or overlapping with other palindromes. So in the picture above we have one palindrome of length 2 (white‑white), three palindromes of length 3 (twice white‑red‑white, once red‑white‑red) and a palindrome of length 5 (white‑red‑white‑red‑white). That makes a total of 2+3+3+3+5=16 points for this line. Order aims to maximize the point total, Chaos to minimize it.

See the full rules or an example game for more details.

points = 0
//Even-length palindromes
//The palindrome's center is just after the field referred to
//E.g. center = 2 implies that the center is between field 2 and 3
for center in [0, 1, 2, 3, 4, 5] {
    for length in [2, 4, 6] {
        left = center + 1 - length / 2
        right = center + length / 2
        //Left and right must be a valid field
        if left < 0 || right > 6 {
            break
        }
        //Left and right must have a filled field
        if colors[left] == empty || colors[right] == empty {
            break
        }
        //The colors of left and right must match
        if colors[left] != colors[right] {
            break
        }
        points += length
    }
}

//Odd-length palindromes
//The palindrome's center is the middle of the field referred to
for center in [1, 2, 3, 4, 5] {
    //Any color chip works for the center field, so we skip it
    for length in [3, 5, 7] {
        left = center - (length - 1) / 2
        right = center + (length - 1) / 2
        //Left and right must be a valid field
        if left < 0 || right > 6 {
            break
        }
        //Left and right must have a filled field
        if colors[left] == empty || colors[right] == empty {
            break
        }
        //The colors of left and right must match
        if colors[left] != colors[right] {
            break
        }
        points += length
    }
}

points = 0
//Even-length palindromes
for center in [0, 1, 2, 3, 4, 5] {
    still_running = true
    for half_length in [0, 1, 2] {
        //Move the fields half_length to either side
        // (We interpret the color array as a 64-bit number)
        //Corresponds with indexing colors[left] and colors[right]
        left = colors << (half_length * 8)
        right = colors >> (half_length * 8 + 8)
        //We replace the ifs and breaks with a boolean
        still_running = still_running &&
            center >= half_length && center + half_length + 1 <= 6 &&
            left[center] != empty && right[center] != empty &&
            left[center] == right[center]
        //If the palindrome is still running, add the points
        points += (still_running * 0xff) & (half_length * 2 + 2)
    }
}

//And similar for odd-length palindromes

For making a bot, most aspects of the game are “standard”: it is a two-player perfect information zero-sum game. The branching factor and game lengths are manageable too. However, there are several interesting aspects to consider when making a bot. First, the game is asymmetric: Chaos and Order have completely different moves. That is not too hard to handle, except that it can lead to duplication of code if you are not careful (I was not that careful, unfortunately). Secondly, the game has an element of chance, by picking random chips from the bag. This has a large impact, since the commonly used minimax and Monte Carlo tree search techniques become much less efficient when handling this correctly.

How to handle chance?

One of the starting points for writing a bot is the minimax algorithm. This looks at all your available moves to choose the best one. For each move, it looks at all the following moves by the opponent and chooses the best one for them (worst for you). At some point, you stop, because you do not have enough computation time to evaluate the complete game. So you stop after looking ahead some number of moves, and use an evaluation function to say how good each game situation is (e.g. how many points have been scored so far).

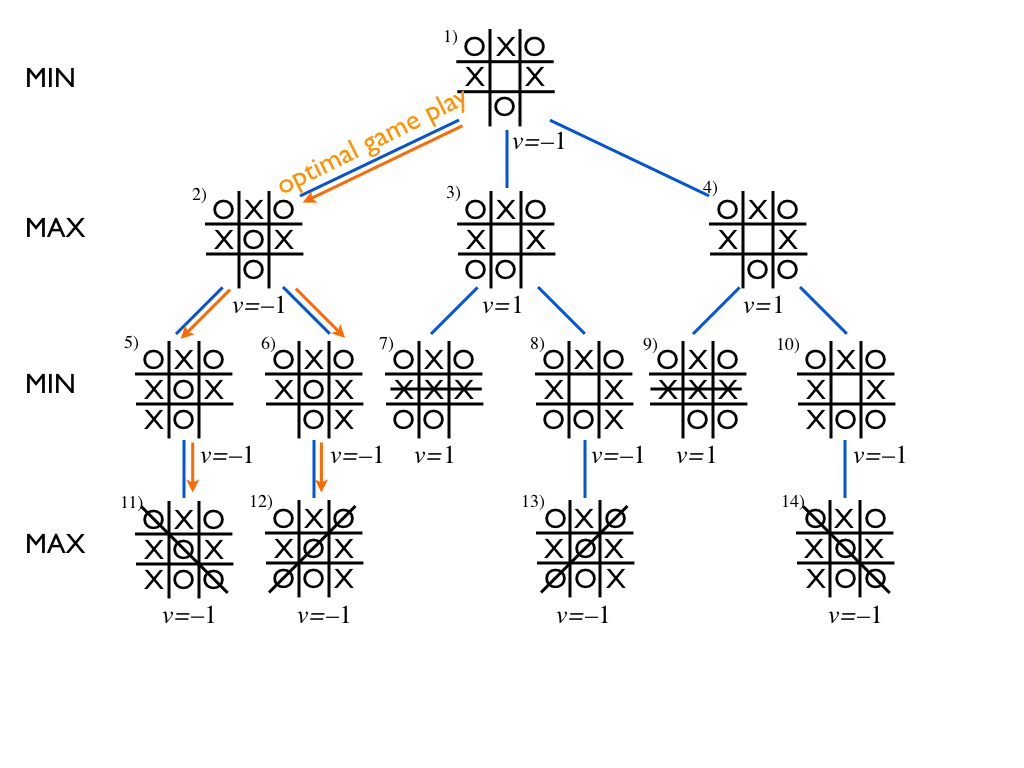

Minimax. Source: Introduction to AI, University of Helsinki, unmodified, CC BY-NC-SA 4.0

Expectimax is the extension of minimax to include “chance nodes”. Whenever we have to draw a random chip from the bag, we just try all possible colors. There is no “best chip color”, of course, but we combine the results by adding them — weighted by the probability of drawing each color. That single change is all we need!

Unfortunately, if we stop here, we lose all the advantages of common minimax extensions, particularly alpha-beta pruning. I consider alpha-beta pruning an essential improvement, since it allows you to search more moves ahead. The key to alpha-beta pruning is that every time we ask for the value of a move, we also supply α — the best value already achieved by Order — and β — the best value already achieved by Chaos. If we encounter a move worse than α or β (depending on whose turn it is), we know that the moves leading to this situation are suboptimal. We stop evaluating this situation and save some time.

Ballard combined these two minimax extensions into “*-minimax” (also see this slide deck). *-minimax computes a lower bound and upper bound for chance nodes, and updates these bounds as the results for each possible chip color come in. If the upper bound goes below α, or the lower bound above β, we can stop evaluating the node. This works, but is not as good as alpha-beta pruning. That is because a bad move is obvious immediately when using alpha-beta pruning (i.e. without chance nodes). But with chance nodes, a bad move can be compensated by a very good move. Because we do not know this in advance, we mostly have to muddle on.

Mostly, because there are a few tricks to apply. Ballard himself proposed “Star2”, where you look at each color just enough to get an upper bound (upper bounds on chip colors translate into a higher α when evaluating other colors). That is a decent point to stop when making your own bot. There are a few other tricks (StarETC and ChanceProbCut) I applied, but these only have a minor effect.

Finally, you can search moves in a smarter order: if you search good moves first, you can increase α/decrease β and thus save more time. In particular, I first try the move stored in the transposition table (if found), then the killer heuristic and then all moves sorted with the evaluation function.

Estimating the future with reinforcement learning

We use our search algorithm (*-minimax) to decide what is the best move, and to estimate the value of the current game state. To do this well, we need a good evaluation function. The evaluation function gives a value to each game situation: assuming optimal play, what is the expected final game score? We can completely create this function by hand, but doing so is hard. Reinforcement learning can help us here!

Still, there is much to decide yourself. First, you need to decide which inputs to use. This is a large topic, so see the next section for more on this. Second, you need to decide the structure of your function: e.g. a linear function or a neural network. More complex functions can be more accurate, but I found that a linear function works very well in practice (neural networks did not do better, when I tried to apply them). Linear functions also have many practical advantages: they are fast, they are simple to validate, you do not necessarily need your own code to train them (just use linear regression in R) and their predictions are easy to understand.

Then we have to decide what the output y for the evaluation function should be, so we can actually train the function. Ideally, it is the expected number of points assuming optimal play. We do not know that value though, but there are multiple alternatives from reinforcement learning theory. I chose Q-learning (another good choice is TD-learning). In Q-learning, you run your search algorithm to compute a y. In essence, your search function handles the short-term value — which move to choose and the direct consequences — before calling the evaluation function for the long-term value. So you use the evaluation function, even while training it! We call this process, of using your previous evaluation function to build a new one, “bootstrapping”.

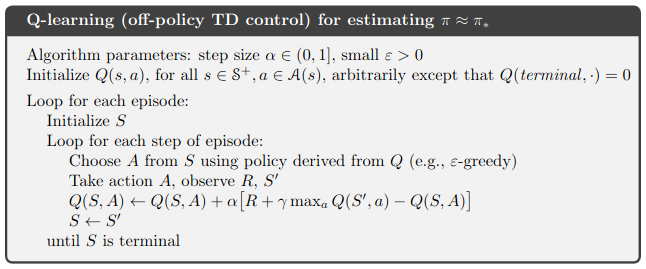

Q-learning. Source: Reinforcement learning, Richard S. Sutton and Andrew G. Barto, unmodified, CC BY-NC-ND 2.0

I implemented a few improvements on top of default Q-learning, which improve the resulting evaluation function or speed up the training. First, I used multi-step Q-learning: instead of only looking one move ahead as with normal Q-learning, I let the search algorithm look two or more moves ahead. This does not always work in reinforcement learning, but works well in games because players act adversarially. The second modification is on which game states I train the evaluation function. Normally, you only train on the states you actually encounter when playing. However, when using the TreeStrap algorithm, you train on many the game states you encounter in the search algorithm as well. Instead of a single training step, you have thousands of (related) training steps for free, combining into a single really effective training step! A second benefit is that the search algorithm actually visits these states, so it is useful to predict them well.

The last thing to consider in reinforcement learning is your training curriculum: from which example matches do we want to learn? You need many matches of the game, i.e. only matches the test competitions is not enough, so you will need self-playing: your bot playing against itself or other bots you have. The matches need to be varied enough to learn from, but still representative of how you will play during the competition. In other games than Entropy, this can mean you need to play suboptimal sometimes, just to get this needed variation. For Entropy this was easy: drawing random color chips from the bag causes enough variation between matches already. Only the first few turns lack this variation, so there a low amount of random moves was useful.

What is important in Entropy?

As I said above, it is important to decide what the inputs of your evaluation function should be. This can simply be the state of the game, but that makes your evaluation function do all the hard work (and makes a linear function impossible). In practice, with little computation time available, it is better to calculate useful stuff based on the game state. Compared to e.g. AlphaGo, I have many times fewer computation power available, both in the actual competition and while training. So we use domain knowledge about Entropy to punch above our weight!

It is hard to give general advice, but here are a few guidelines to strive towards:

• Your inputs should have a (near) causal relation to the output y. Pure correlations do not generalize well to unseen situations. An example: in Entropy, I fixed the coefficient for the current points to 1. This means that the past points (whether few or many) cannot influence the future points. Having many points makes you inflexible, because there are more ways to lose points, but I think that other inputs should capture this inflexibility instead.
  One of the best inputs I used was the “largest threat”, since Chaos must act to prevent these points. Often, there is no defence, or the moves unlock other opportunities for Order. Thus, there is a strong causal relation to y.
• Your inputs should be as orthogonal as possible. If inputs are near-collinear it makes training harder, because it is hard to distinguish effect of the inputs. You can check the VIFs, anything below 10 should be fine, but lower is better. In practice, this means you should not have many inputs related to the same concept, but only a few. One useful trick for two related inputs: use the average and the difference of the two; this will be near-orthogonal!
• Continuous or many-valued inputs are better than binary inputs. Continuous inputs can give more nuanced information, which is useful in predicting better. Breaking up a continuous input into multiple binary inputs is more flexible, but usually not worth it.
• Think about how the gameplay changes during the game. Some inputs might not be important in the game opening, but turn out very relevant later on. If such things happen, it is useful to switch to different coefficients for every turn. This makes training harder, but can give better results.

For Entropy, I created the following inputs:

The neural network that did not work

So, I also tried using a neural network instead of a linear function. After all, neural networks are used with much success in many domains, with AlphaGo as prime example. With the same inputs, I hoped to play a bit better too. I think I did everything right: I was using the Adam optimizer already for the linear function, I used one or two hidden layers, I tried different number of nodes and activation functions (ReLU and tanh), I standardized the inputs, and probably much more. However, it did not work out; it played worse than the linear function.

Still, I would like to be proved wrong, and learn how to work with neural networks in the future. If you are interested, please try it! The details on the dataset and challenge are below.

There are a few thoughts I have, but did not investigate. First is that the training process is unstable because I have per-turn weights. Second, maybe I just need much more data.

Competition result

Competition results
Source: CodeCup

I ended up in second place, a large achievement for me! I hoped to win, of course, but this result is better than I have gotten in any other year. To be fair, how much time you spend improving your bot is also crucial, and there is some luck involved in thinking of good ideas. Likewise, if the opponents also find good ideas and put in more effort, you will drop a few places. Nonetheless, I hope that reading this page can help you do better in the future.

Have you gotten interested in creating a bot too? Then you can join me in next year's CodeCup competition!

Feel free to contact me at placeholder

Appendix: Feedback from the CodeCup forums

When the competition finishes, there usually is a good discussion on the forum about the strategies everyone used. Here is a grab bag of things I found interesting:

• Most people used an expectimax variant, like me. Some people used Monte Carlo tree search, which has the advantage that you do not need to design an evaluation function.
• Many the competitors had the idea to precompute all possible patterns of a line. I did not, yet it would have made my program roughly twice as fast! Not sure this is total loss, since accepting the slow speed did make me consider good but slow-to-calculate inputs.
• Some people played “colorless” chips with Chaos, which never form palindromes. This makes the search algorithm faster, but a bit less accurate.
• A few contestants computed the average score of random playout, i.e. of filling the board with random color chips. This works well for a lot of games, so no surprise that it works for Entropy as well. I did think of this, but could not make it fast enough (without precomputed lines...). Experimentation shows that it would not have made my own evaluation function better, though.
• Many noted that ending the search with a move by Chaos did not help. Likely because the true effect of a chip placement is often only visible once Order moves it. I worked around this by allowing Order to move the just placed chip (only when stopping the search after Chaos' move). You can do this in roughly the same time as just evaluating Chaos' move.

Appendix: How to deal with variation and uncertainty

When repeatedly playing the game, there will be some variation in the outcome. When estimating playing strength of your bots, and of those of the other competitors, you need to take this variation into account. So it's always useful to compute a standard deviation and 95% confidence interval, showing you whether you might have gotten (un)lucky or if the difference definitely exists.

Using the competition results, I have modelled the playing strength of each bot. This model is imperfect, but a decent approximation, showing that the ranking could easily have been different.

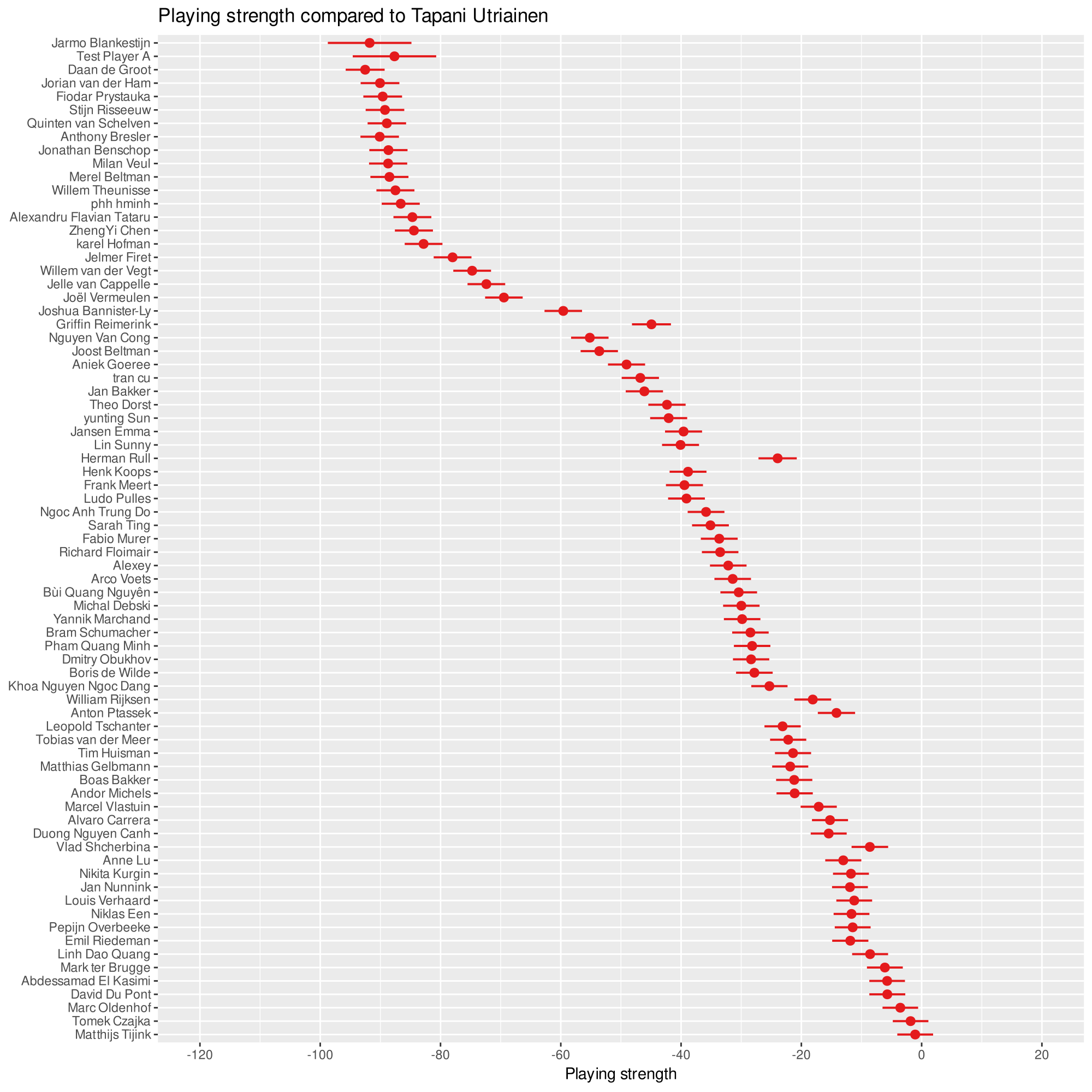

Estimated playing strength, click to view large version.
Crashes and timeouts are ignored, thus ranking competitors differently.
Regression model: pair of matches outcome = strength[player1] - strength[player2] + error.

This has been a useful tool leading up to the final competition, together with plots of the strength playing as Order or Chaos (not shown). For example, I estimate that my bot plays relatively strong as Chaos, even making it the strongest Chaos bot (with large uncertainty though). Nevertheless, for the final competition we can do a bit better, since the final competition has been re-run: same bots, but new matches. With that, I calculate that I could have ended up higher than Tapani Utriainen with 22% chance, even though we had ~200 points difference! Therefore, I recommend playing more matches to counteract this uncertainty, in future competitions.

Appendix: on ideas, mistakes and making decisions

In general it is useful to gather ideas in the literature. Another useful resource is the Chess Programming Wiki. But once you have some ideas, how do you evaluate them?

I found that is important to focus on quickly evaluating ideas. So instead of fully programming a fast new input based on some idea, I just make a slow, easy to program and mostly-correct input. Then I run this on my database of representative matches, and check how this changes the regression R² with some R code. This is just indicative, since the R² is not important by itself, but lets me see what the potential is of my new input. After that, I can make a correct and fast version, and let it train my evaluation function. But even here, I run my training program with a lower time limit per turn, so I can evaluate quickly. The training program also spends some time to play matches against the old version. A bit slower, but it directly shows you how your new idea really performs. Only the final version runs for hours to get the best quality results.

Another thing that I cannot stress enough: look at your data! By making plots you see unexpected relations, you see wrongly computed values and you find opportunities for improvement.
